Working principle
※ Raw materials is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out hot heat exchange with damp raw material. Then the damp air is exhausted out through cyclone seperator and duster and the drying raw material is discharged through discharge outlet.

Feature
※ The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
※ High effection, raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
※ It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted through continuous variable speed.
※ It is small for damaging the surface of raw material. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted even if raw materials have anomaly shape.
※ It is effective to prevent cross pollution between raw material and air because the equipment adapts fully closed structure. The environment of operation is clean.
※ You can string multi-set to raised capacity of raw materials, such as polyacrylamide.

Descriptions
※ The drier is suitability in chemical industry, pharmaceutical, food, plastic, oil, slag, slat, sugar and so on, for drying, cooling and wetting.

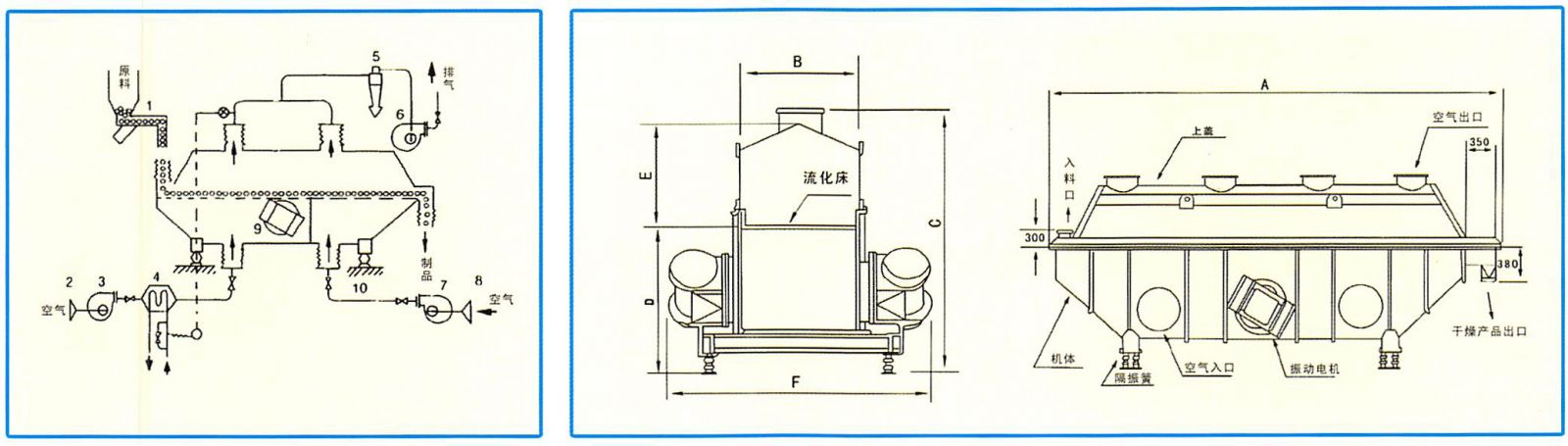

Flow chart

Technical parameters
